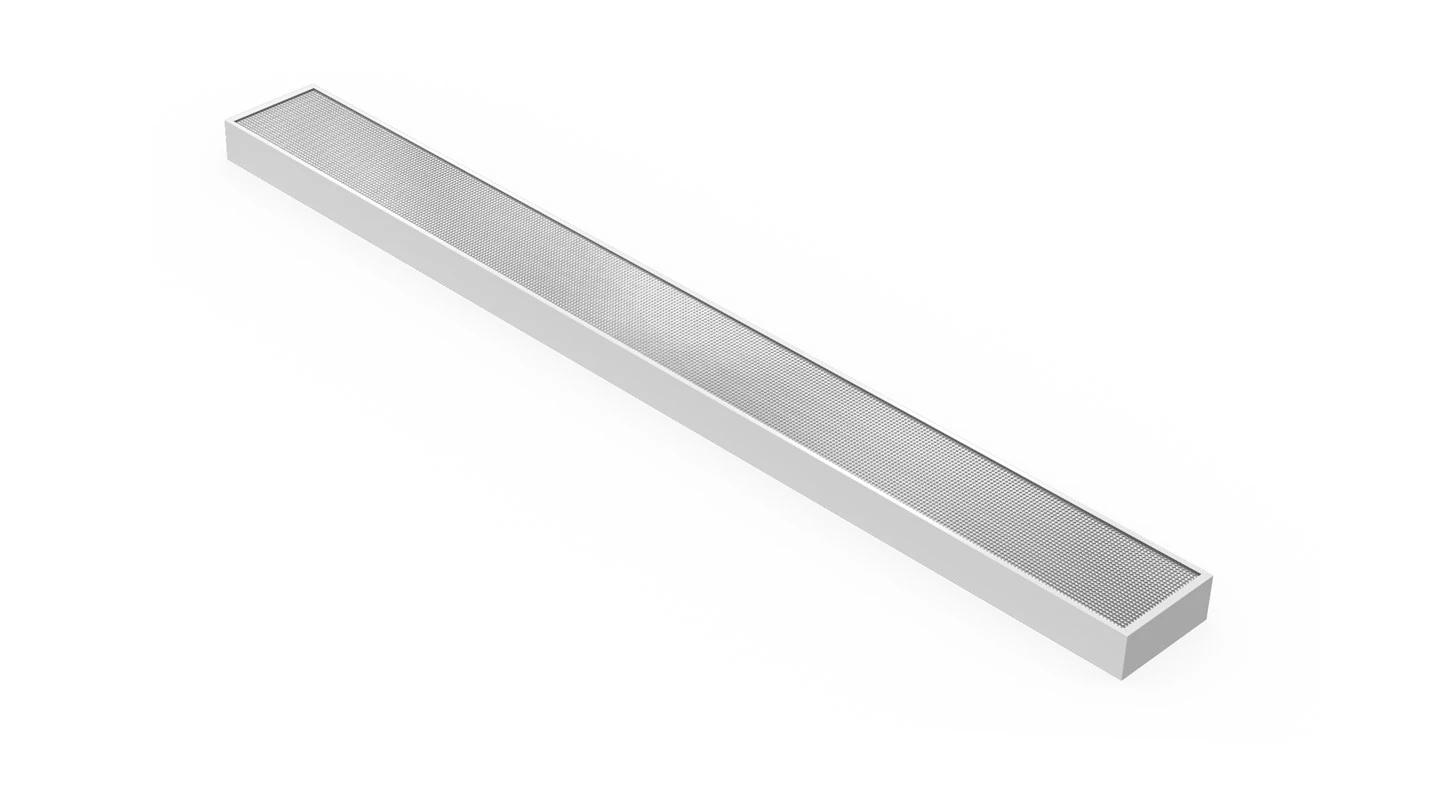

Brighton UGR Çıta Işığı

Brighton UGR Batten Light

Brighton-Batten2

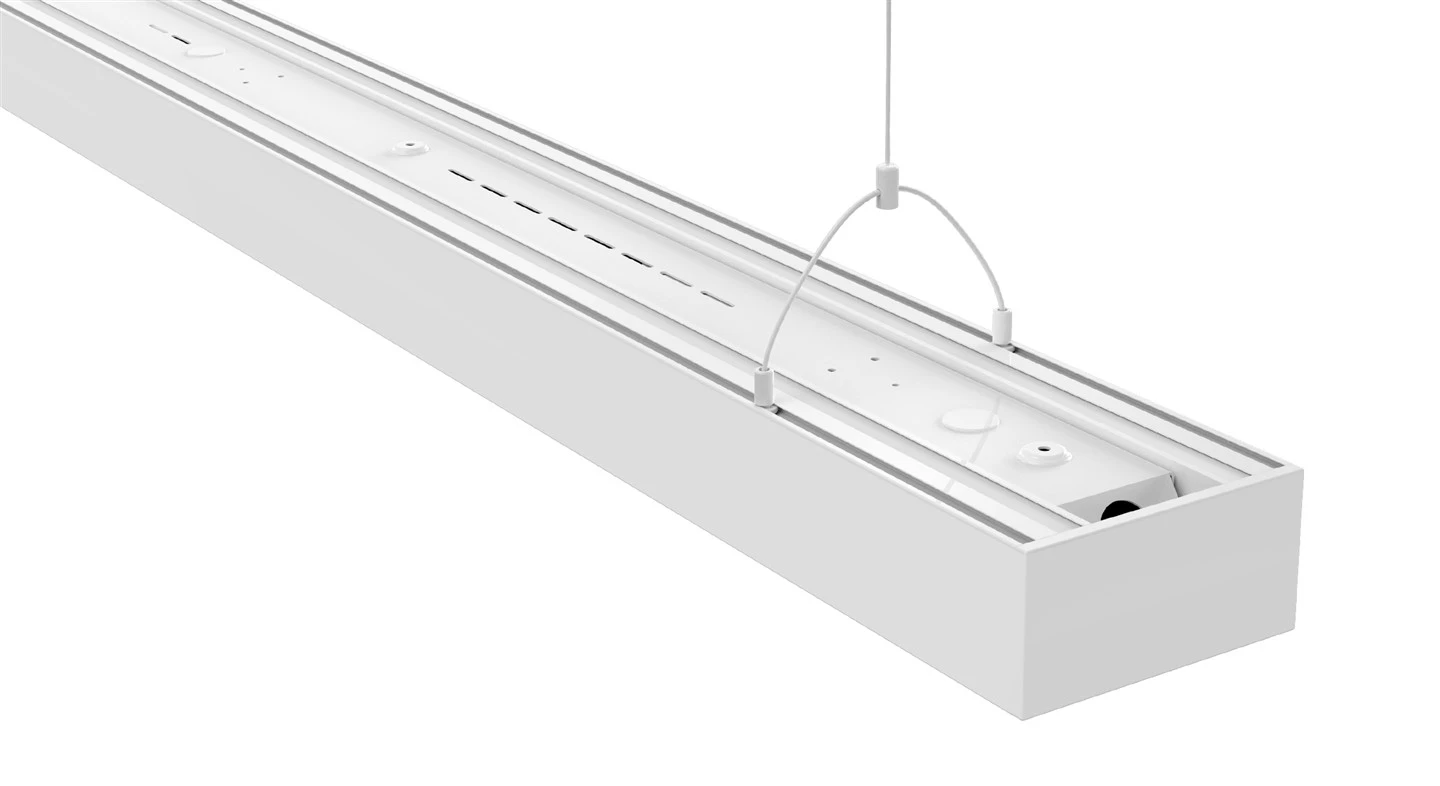

Brighton-Batten3

Brighton-Batten4

Brighton-Batten5

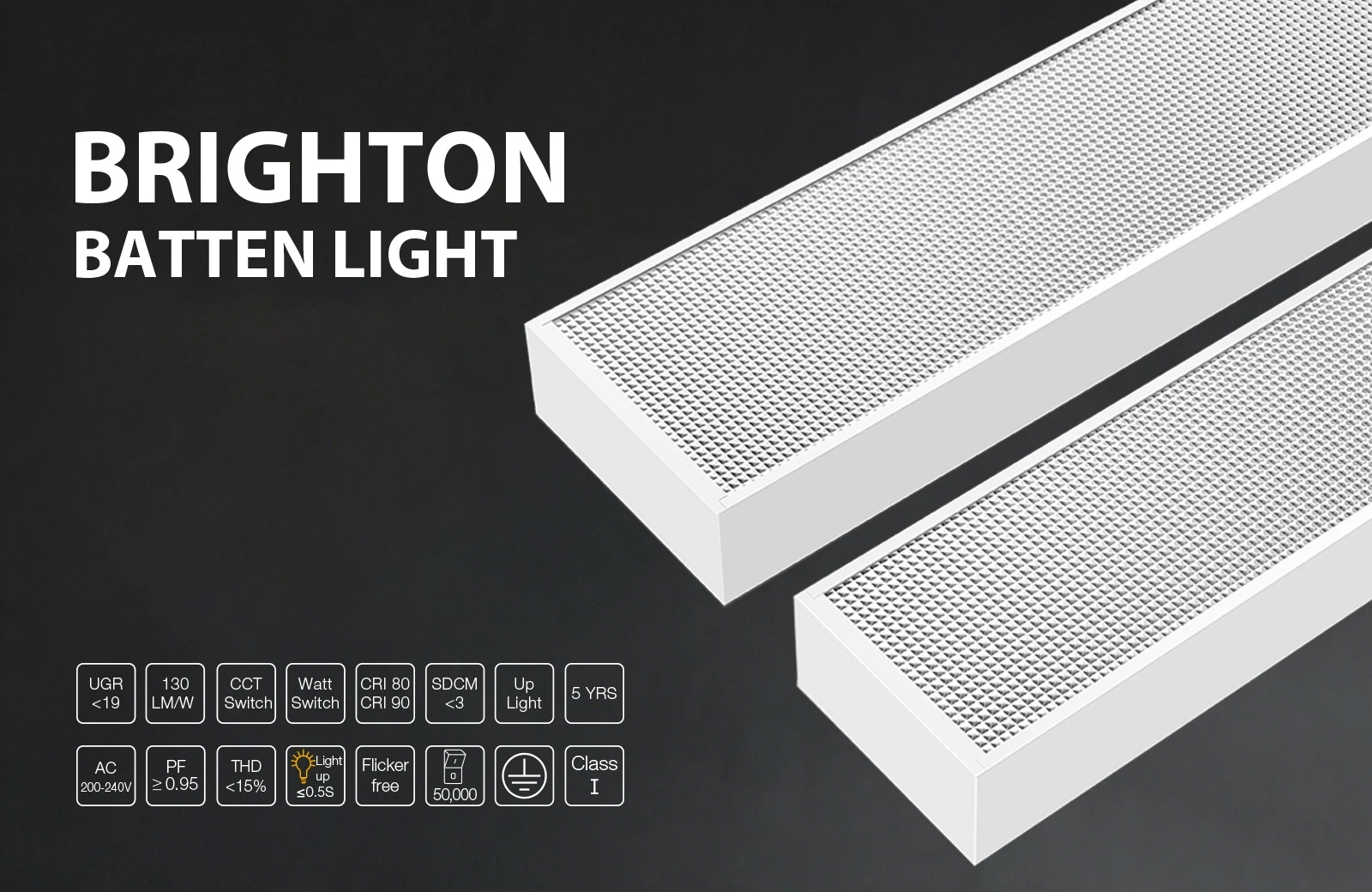

Tanım:

Brighton çıtalı aydınlatma armatürleri yalnızca optik UGR gerekliliklerini yerine getirmekle kalmayıp en yeni tasarımdır.<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

Özellikler:

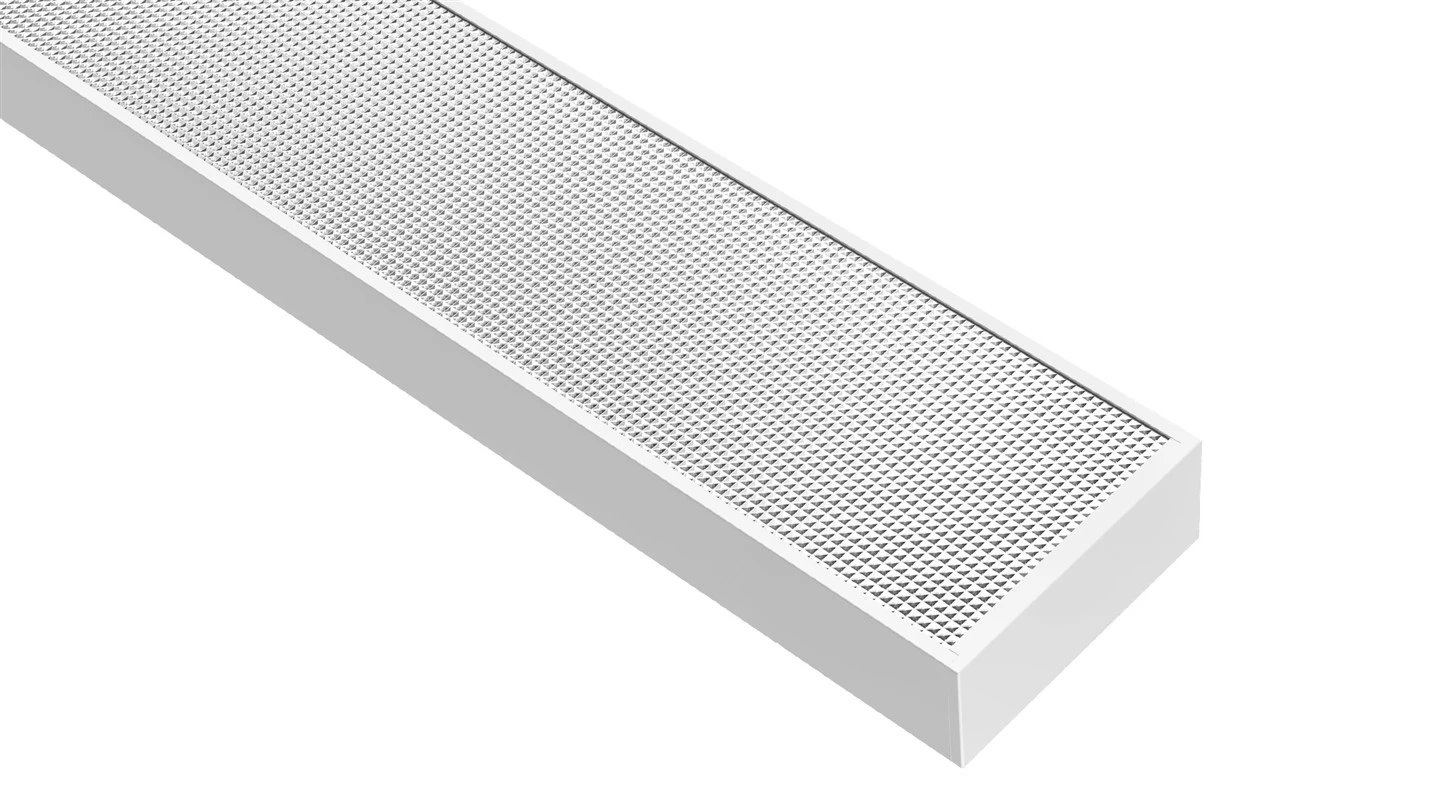

>UGR<19 with prismatic diffuser

>LED sürücüsünde güç ve CCT anahtarı

>120mm|150mm genişlik mevcut

>Ra80 veya Ra90, SDCM<3

>YUKARI ışık @ sabit 2X4W seçenek olarak

>Kablo girişi için uç veya arka besa

>Seçenek olarak çeşitli farklı işlevler

>4 ft / 5 ft / 6 ft boyut mevcut

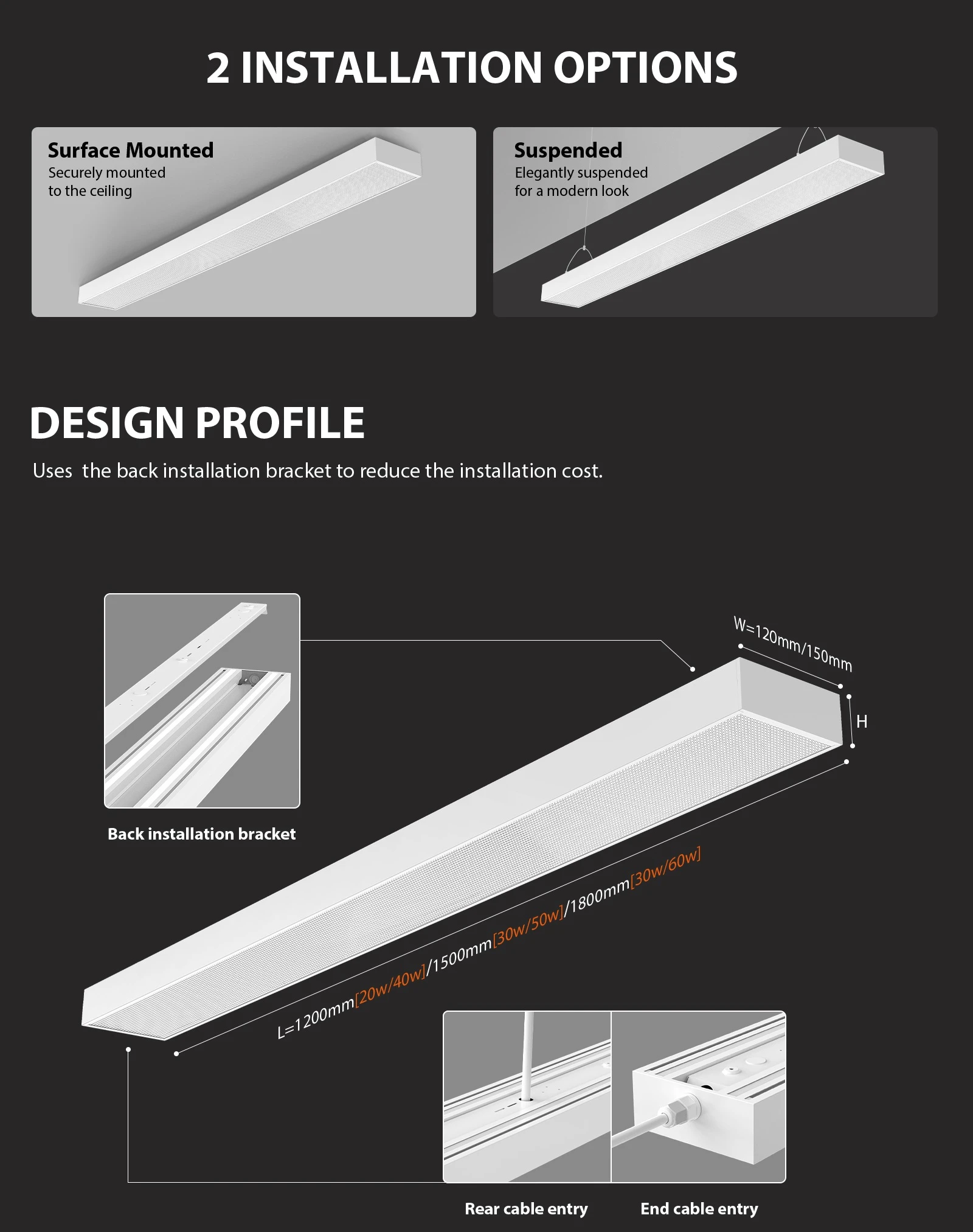

>Gömme / Yüzeye montaj /Askı montajı

>5 yıl garanti

Send Inquiry

Download

Description

Technical Parameters

GİRİİŞ:

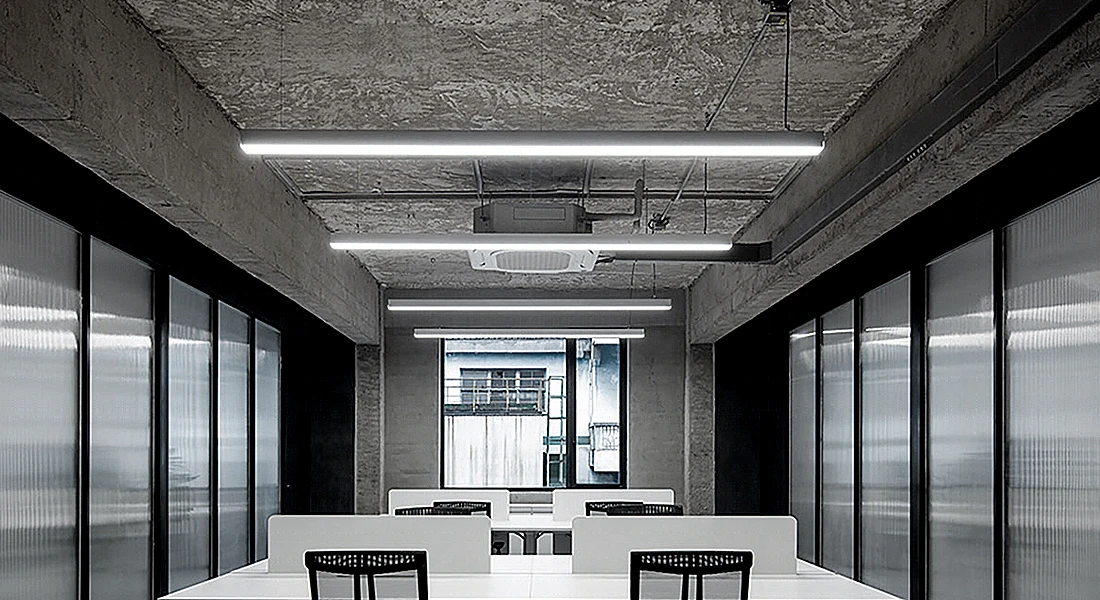

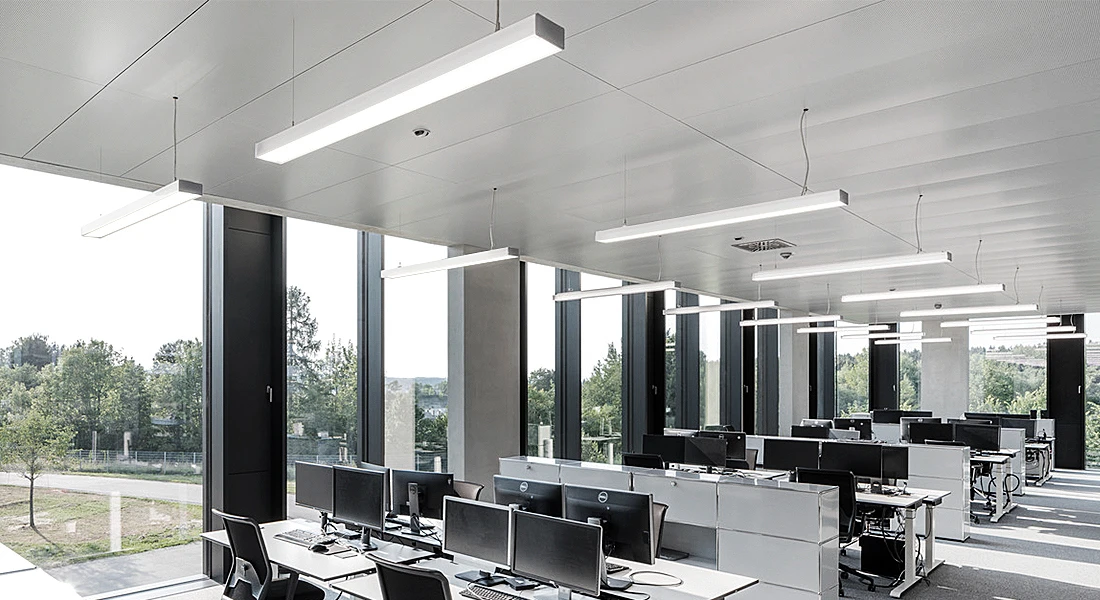

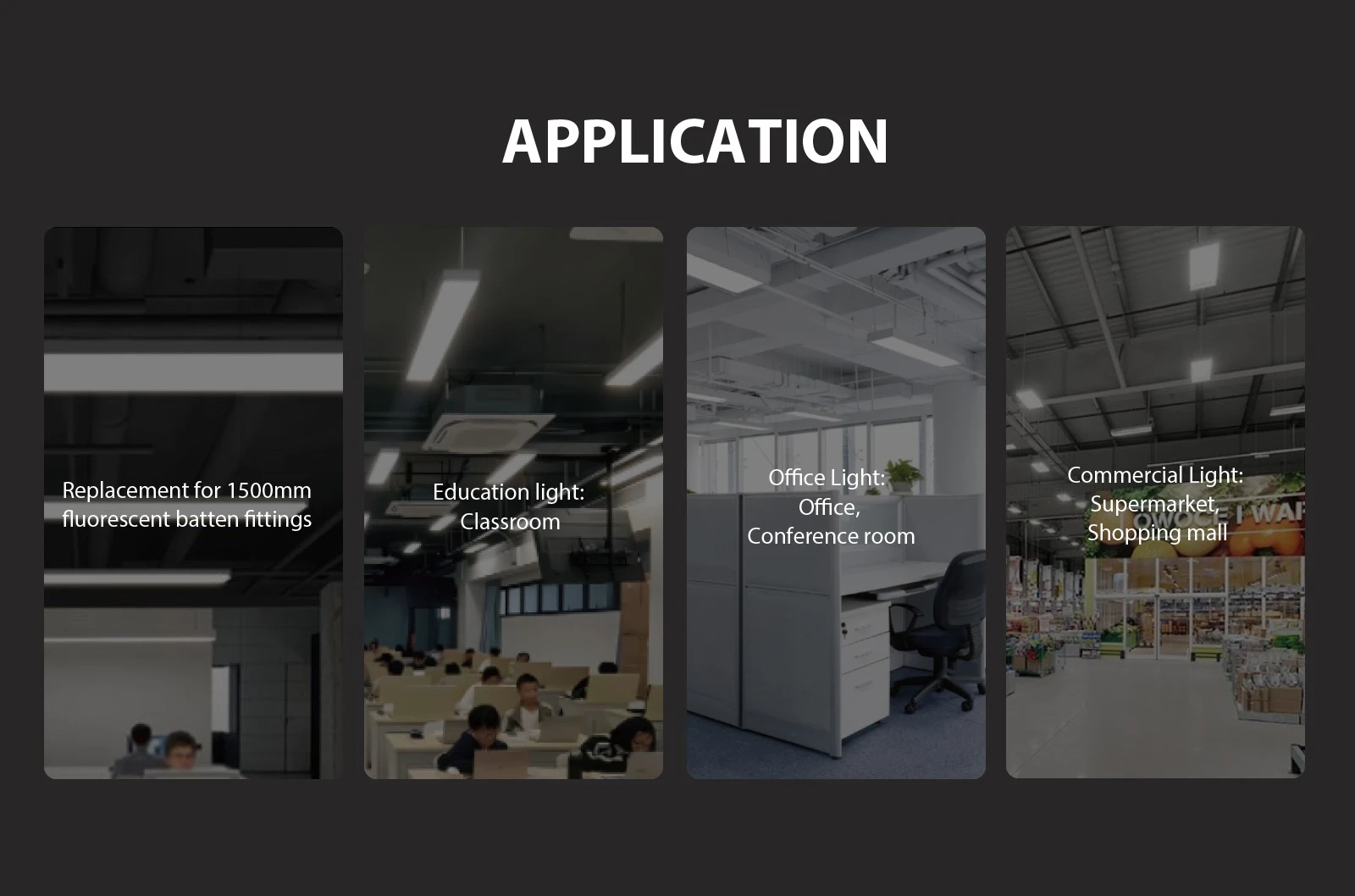

Brighton Batten LED aydınlatma, seçenek olarak 120 mm, 150 mm genişlik sunar, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

MÜLK:

Brighton UGR Batten 150mm, üstün performans ve esneklik için tasarlanmış en yeni çıta lambamızdır. 150 mm genişliğe sahip bu ışık, her türlü alana kusursuz bir şekilde entegre olur ve düşük parlamaya (UGR) sahiptir.<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

Sipariş Kodu	Genişlik	Nominal Güç	LM/W	Lümen	SDCM/Ra	Watt/ŞNT Anahtar	Ürün Boyutu	GW/CTN	Adet/Koli
BT500-04W-DT1-40F01	120mm	20W/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	U1200xG120xY60	8.84 kg	4 adet
BT500-05W-DT1-50F01	120mm	30/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	U1500xG120xY60	11.12 kg	4 adet
BT500-06W-DT1-60F01	120mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	U1800xG120xY60	14.52 kg	4 adet
BT510-04W-DT1-40F01	150mm	20/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	U1200xG150xY60	11.12 kg	4 adet
BT510-05W-DT1-50F01	150mm	25/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	U1500xG150xY60	13.40kg	4 adet
BT510-06W-DT1-60F01	150mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	U1800xG150xY60	16.80 kg	4 adet
